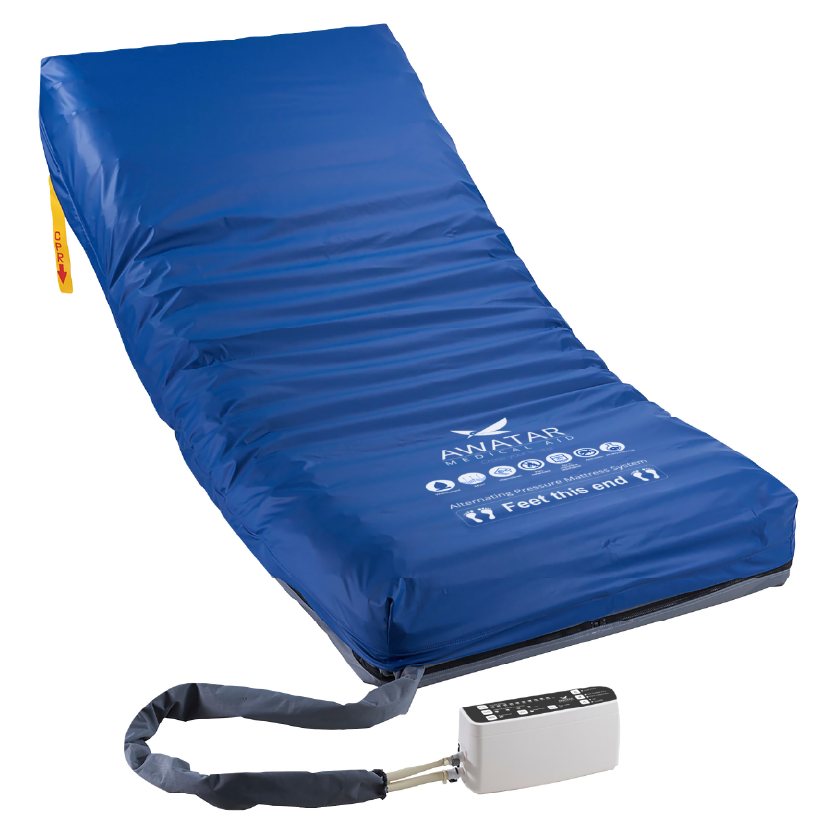

Aircare 508 Alternating Pressure Mattress System — Comfort, Ease & Durability for Bariatric & Extended Care
The Aircare 508 is built for homecare and long-term care environments requiring a heavier-duty pressure care solution. Its 21-cell mattress uses larger 8" air cells with independently inflated upper and lower layers, supporting a load capacity of up to 200 kg — making it well suited for bariatric or higher-weight patient needs.
The pump features a patented internal mechanism for low vibration, low noise, and low power consumption, along with full-function digital control, CPC quick connectors, and a memory revert function that restores previous settings after a power interruption. Safety features include power safety management, an external double-fuse-holder, a low-pressure and power-failure alarm, and a lock/unlock button for secure operation.
The mattress also includes a Retainer Air Cell (RAC) system to prevent over-inflation and a friction- and shear-prevention coverlet to support skin protection, along with a PU membrane surface, dust-proof sleeve, and CPR quick-deflation valve for practical everyday care.
Key Benefits:

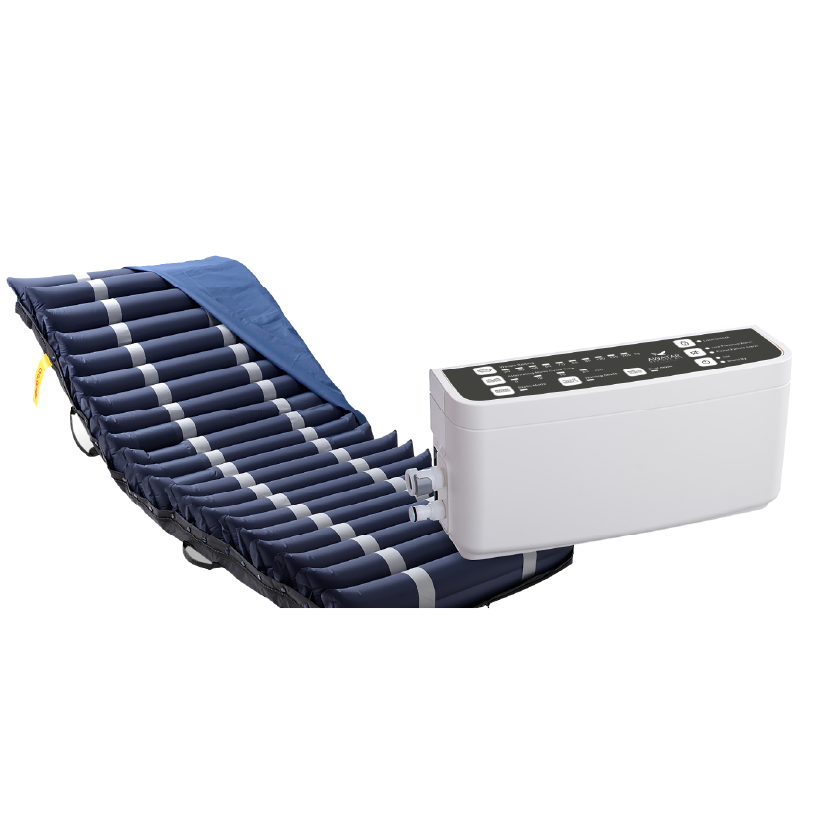

- 21-cell alternating pressure mattress with 8" air cells for higher-capacity support
- Supports load capacity up to 200 kg
- Patented low-vibration, low-noise pump mechanism
- Weight settings from 30 kg to 200 kg for personalized therapy
- Retainer Air Cell system to prevent over-inflation
- CPR quick-deflation valve and visible filter for easy maintenance
- Suitable for homecare, long-term care, and bariatric care settings
Technical Description

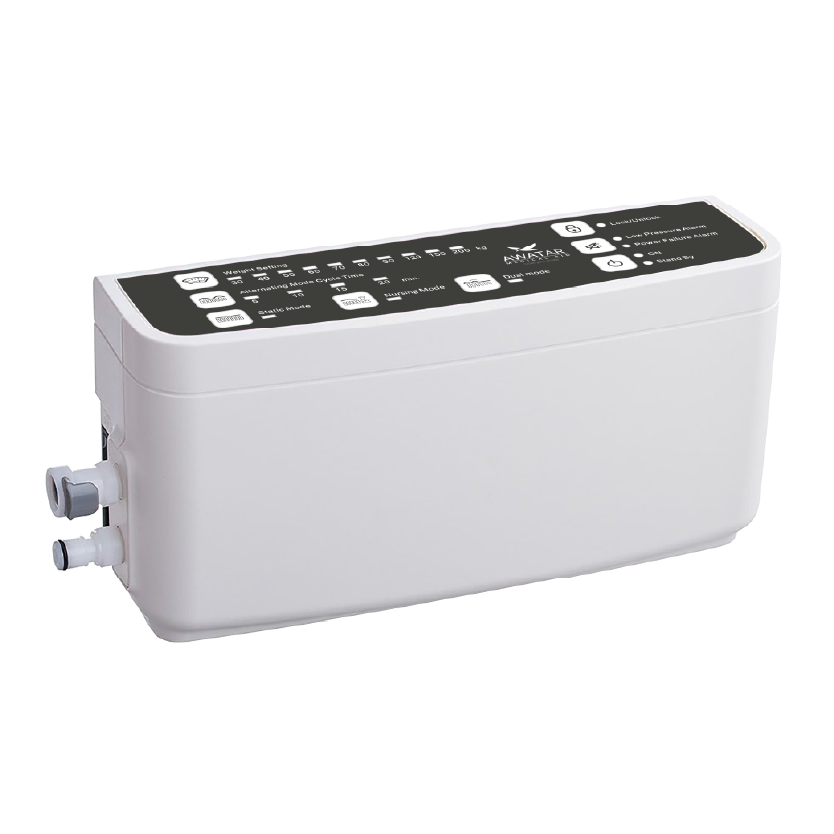

Control Unit
| Specification |
Detail |
| Model |
AW AM002 8C22 |
| Input Power |
AC100-120V/60Hz or AC220-240V/50Hz |
| Max Power Consumption |
10W max |
| External Fuse |
T1 AL/250V |
| Dimensions |
L26 x W8 x H13 cm |
| Weight |
Approx. 1.5 kg |
| Air Flow Rate |
8 LPM |
| Weight Selection |
30, 40, 50, 60, 70, 80, 90, 120, 150, 200 kg |
| Power Cord Length |
3.5 m |
| Appliance Category |
Class I, Type BF |
| Certification |
CE, EN60601, EN60601-1 (MDD), EN 6061-1-2, FCC Part 18-Class B |
Key Features
- Retainer Air Cell (RAC) — prevents over-inflation
- Friction & Shear Prevention Coverlet
- Full-function digital control with lock/unlock button
- CPC quick connectors and CPR quick-deflation valve
- Dual external fuse and visible filter
- Headend 3-hose, no alternating design

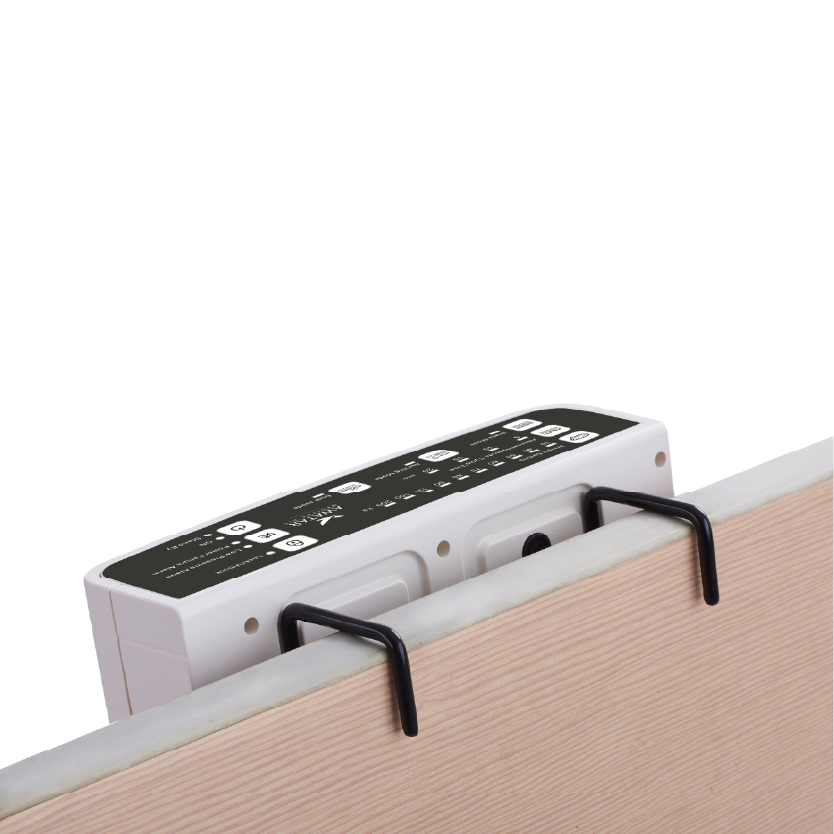

- Attaches to any standard bed rails
