Description
Aircare 505 Alternating Pressure Mattress System — Comfort, Ease & Durability
The Aircare 505 is designed to support pressure care in homecare and long-term care environments, combining a reliable pump unit with a 21-cell alternating pressure mattress for effective, comfortable pressure redistribution.

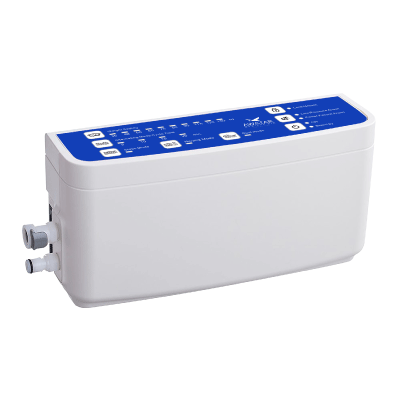

The compact pump features a patented internal mechanism for low vibration, low noise, and low power consumption, along with full-function digital control, CPC quick connectors, and a memory revert function that resumes previous settings after a power interruption. Built-in safety features include power safety management, an external double-fuse-holder, a low-pressure and power-failure alarm, and a lock/unlock button to prevent accidental setting changes.

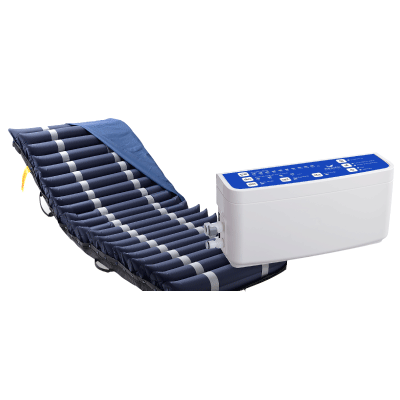

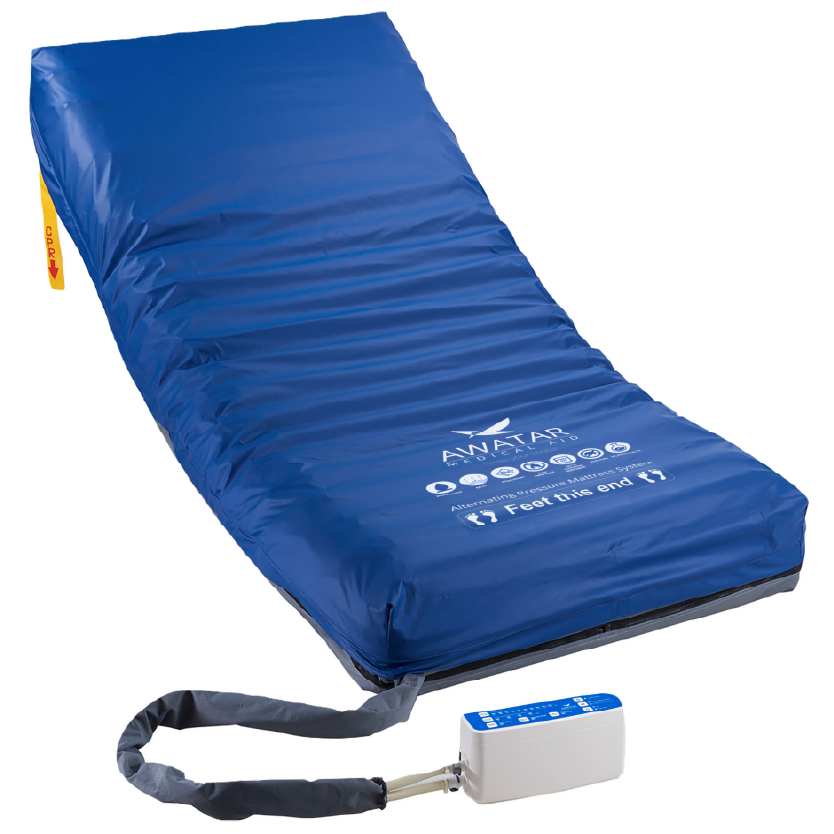

The mattress itself uses 21 individual 5" air cells with upper and lower cells independently inflated, a Retainer Air Cell (RAC) system to prevent over-inflation, and a friction- and shear-prevention coverlet to help protect skin integrity. A PU membrane surface with a dust-proof sleeve, wide elastic bands, and a CPR quick-deflation valve add further practicality for caregivers.
Key Benefits:
- 21-cell alternating pressure mattress with independent upper/lower inflation
- Patented low-vibration, low-noise pump mechanism
- Weight settings from 30 kg to 150 kg for personalized therapy
- Retainer Air Cell system to prevent over-inflation
- CPR quick-deflation valve and visible filter for easy maintenance
- Low-pressure and power-failure alarms for added safety
- Suitable for homecare and long-term care settings
Technical Description
Control Unit
| Specification | Detail |
|---|---|
| Model | AW AM001 5C21 |
| Input Power | AC100-120V/60Hz or AC220-240V/50Hz |
| Max Power Consumption | 10W max |
| External Fuse | T1 AL/250V |
| Dimensions | L26 x W8 x H13 cm |
| Weight | Approx. 1.5 kg |
| Air Flow Rate | 8 LPM |
| Weight Selection | 30, 40, 50, 60, 70, 80, 90, 110, 130, 150 kg |
| Power Cord Length | 3.5 m |
| Appliance Category | Class I, Type BF |
| Certification | CE, EN60601, EN60601-1 (MDD), EN 6061-1-2, FCC Part 18-Class B |
Air Mattress
| Specification | Detail |
|---|---|
| Dimensions | L195 x W85 x H13 cm |
| Weight | Approx. 3.8 kg |
| Load Capacity | 30–150 kg |
| Air Cells | 5" cells, 21 pieces, Nylon + PU |
| Base Material | Nylon + PVC |
| Mattress Cover | PU membrane / Polyester PK |
Key Features
- Retainer Air Cell (RAC) — prevents over-inflation
- Friction & Shear Prevention Coverlet
- Full-function digital control with lock/unlock button
- CPC quick connectors and CPR quick-deflation valve
- Dual external fuse and visible filter
- Headend 3-hose, no alternating design

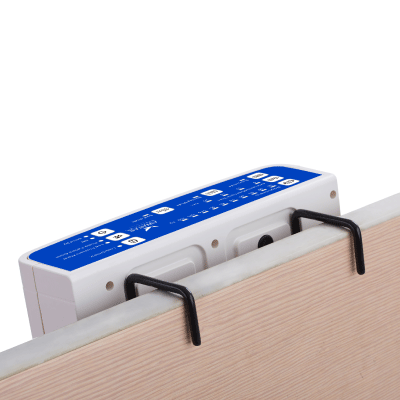

- Attaches to any standard bed rails
